Description

Product details

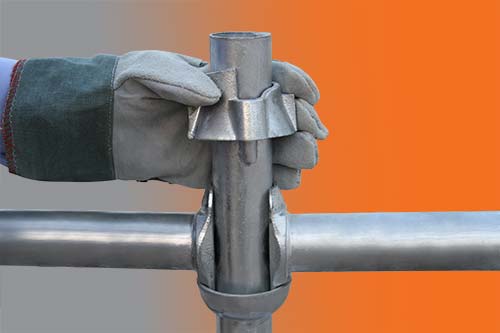

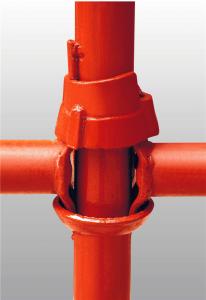

Cup Lock is a unique node point connection allows up to four horizontal members to be connected to a vertical members in one single action – without the use of nuts and bolts or wedges. The locking device is formed by two cups Top & Bottom Cup. Single node point action of unique locking make Cup lock a fast, versatile and optimized systems of scaffolding .Cup lock Scaffolding for variety of applications just like , Slab, Facade ,Any work of Outer side of building & Plastering Work , Support wall form work ,demolition and maintenance projects throughout the globe. CUP LOCK are principally used in access scaffolding applications and also as a base structure for form work support applications. Cup lock are made of 40 NB "B class pipe". # VERTICALS : Both ends are drilled to fix spigot joints. Bottom cups are welded at 500 mm distance position. Top cups can be moved and retained by a fix stop. VERTICALS are available in the following sizes: - 0.5 Meter / 1 Meter / 1.5 Meter / 2 Meter / 2.5 Meter/ 3 Meter . # LEDGERS: Length of the ledger is calculated between center to center of two vertical. LEDGERS are available in the following sizes: - 550 MM / 0.9 Meter/ 1 Meter / 1.2 Meter / 1.5 Meter / 2 Meter / 2.45 Meter (RATES PER KILOGRAM) . Service Cuplock scaffolding on Hire Cuplock scaffolding on sales
